Leapmotor B03X Home Charger, Charging Cable & V2L Guide NZ

The Leapmotor B03X will be available in 2 models. The Life 39.8kWh and Design 53kWh. Both use a Type 2 AC / CCS2 DC charge port and have an 11kW onboard AC charger.

For most NZ homes, a 7.4kW single-phase wall charger is the practical choice. If your home has three-phase power, our Tron 22kW three-phase charger lets the B03X use its full 11kW AC charging rate.

Below you can compare B03X home charging times, wall chargers, portable chargers, Type 2 cables, public fast charging and Vehicle-to-Load (V2L) options for New Zealand.

Shop B03X home chargers Charging times Shop charging cables Shop V2L adapter

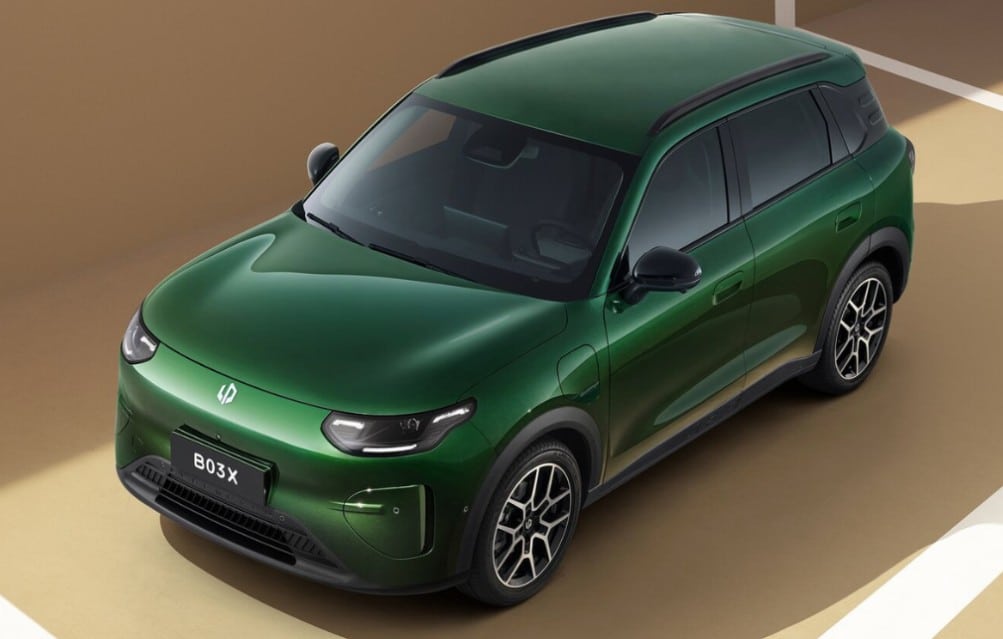

B03x charging at home

Best for most homes

7.4kW / 32A single-phase

Simple overnight charging on a normal single-phase supply

Fastest home AC

11kW to the B03X

Use a three-phase wall charger where three-phase power is available

Battery & range

39.8 / 53kWh

292km Life • 382km Design WLTP

DC fast & V2L

100 / 133kW DC

CCS2 • V2L up to approximately 3.3kW

Charging factLifeDesign
Battery39.8kWh LFP53kWh LFP
WLTP range292km382km
AC connectionType 2
Maximum AC rate11kW three-phase
Single-phase home chargingUp to approximately 7.4kW on a 32A supply
Fastest home setupThree-phase wall charger — B03X draws up to 11kW
Public DC connectionCCS2 — up to 100kWCCS2 — up to 133kW
V2LYes — approximately 3.3kW via a compatible Type 2 V2L adapter

Best home charger for the Leapmotor B03X

The right charger depends mainly on whether your home has single-phase or three-phase power.

BEST FOR MOST NZ HOMES

7.4kW single-phase smart wall charger

A 32A single-phase wall charger is the most practical B03X setup for a typical New Zealand home. The car can draw approximately 7.4kW from a suitable single-phase supply, giving an estimated 10–100% charge in around 5.4 hours for the Life or 7.2 hours for the Design.

Choose this option if your house has single-phase power, you normally charge overnight, or you want to keep installation simple.

FASTEST HOME CHARGING

Three-phase charger — up to 11kW to the car

The B03X has an 11kW three-phase onboard charger. If your property has a three-phase supply, our Tron 22kW three-phase wall charger allows the car to use its full AC capability.

Estimated 10–100% charging time is around 3.6 hours for the Life and 4.8 hours for the Design. The wall charger is capable of 22kW, but the B03X itself limits charging to 11kW.

Choose tethered if: you want the easiest everyday setup — park, plug in and charge without getting a separate cable out.
Choose socket / untethered if: you want a tidier charger, already have a Type 2 cable, or want to change cable length later.

Dynamic load balancing can automatically reduce charging current when the rest of the house is using more power. Solar diversion can vary charging to use excess solar generation, and app scheduling lets you target overnight, off-peak or free-power periods.

Have three-phase power?

Use the Tron three-phase wall charger to let the B03X charge at up to 11kW AC.

View Tron 22kW charger

Leapmotor B03X charging cost & time calculator

Select the NZ Life or Design battery, your electricity price and the charger you plan to use. The B03X accepts up to 11kW AC on three-phase power.

Estimated time to charge

To 100% from your starting charge

Estimated cost to charge

$0.00
0.00 kWh from the wall (approx.)
Geely ex2 home charging

New Zealand model

About the Leapmotor B03X

The Leapmotor B03X is a compact five-seat electric SUV sold as the A10 in China. New Zealand receives two versions: the Life with a 39.8kWh LFP battery and the Design with a larger 53kWh LFP battery.

The Life is rated at 292km WLTP, while the Design increases this to 382km WLTP. Both have front-wheel drive, an 11kW AC onboard charger and a Type 2 / CCS2 charge port.

Vehicle-to-Load support lets the B03X traction battery power normal AC appliances through a compatible V2L adapter connected to the Type 2 charge port.

ItemLifeDesign
Battery size39.8kWh LFP53kWh LFP
WLTP range292km382km
DriveFront-wheel drive
Motor output130kW / 200Nm145kW / 200Nm
AC charge portType 2
Maximum AC charge speed11kW three-phase
DC charge portCCS2
Maximum DC charge speedUp to 100kWUp to 133kW
V2LYes — approximately 3.3kW via compatible adapter

Leapmotor B03X home charging times

Estimated charging times from 10% to 100%, allowing approximately 10% for charging losses. Three-phase charging is limited to the B03X’s 11kW onboard AC charger.

Charger typeCharging powerLife (39.8kWh)Design (53kWh)
Portable charger, standard NZ socket (8A)~1.8kW~21.6 hrs~28.8 hrs
10A portable Type 2 charger~2.3kW~17.3 hrs~23.0 hrs
16A portable charger (caravan plug)~3.7kW~10.8 hrs~14.4 hrs
32A single-phase wall charger~7.4kW~5.4 hrs~7.2 hrs
Three-phase wall charger11kW vehicle limit~3.6 hrs~4.8 hrs

Actual charge time varies with supply voltage, temperature, battery temperature, state of charge, charger settings and the vehicle’s charging behaviour.

How much range will each charger add?

Approximate kilometres of WLTP driving range added per hour of charging. Real-world range will vary with speed, weather, terrain, tyre pressure and climate-control use.

ChargerLifeDesign
8A portable charger~12km per hour~12km per hour
10A portable charger~15km per hour~15km per hour
16A portable charger~24km per hour~24km per hour
7.4kW single-phase wall charger~49km per hour~48km per hour
11kW three-phase AC charging~73km per hour~71km per hour

Want figures for your own electricity price and starting charge? Use the B03X calculator above, or see our charge time calculator and charge cost calculator.

Portable charger for the Leapmotor B03X

A portable Type 2 charger is useful as a backup, travel charger or lower-cost charging option for the B03X.

From 10–100%, a 10A portable charger takes roughly 17.3 hours for the Life or 23 hours for the Design. A 16A portable charger connected to a correctly installed blue caravan-style socket reduces this to around 10.8 and 14.4 hours.

Choose 10A if: you want maximum flexibility from a standard suitable household socket.
Choose 16A if: you have, or plan to install, a dedicated caravan-style socket and want faster portable charging.
10a Smart EV Charger Type 2

Plug in EV chargers

10a Plugin EV Charger Type 2

$399.00 inc. GST
16a type 2 ev charger

Plug in EV chargers

Portable 16A EV Charger – Blue Caravan Plug

$415.00 inc. GST

What charging cable does the B03X need?

Vehicle-side plug: Type 2. You will need your own Type 2 to Type 2 cable for socket-only home chargers and many public AC charging stations.

Because the B03X can charge at up to 11kW three-phase, a 22kW three-phase Type 2 cable is the best all-round choice. It allows the car to take its full 11kW rate from a suitable three-phase charger and also works normally on 7.4kW single-phase chargers.

A 7kW single-phase cable will still charge the B03X, but it can prevent you from using the car’s full 11kW capability at a three-phase AC charger.

DC fast chargers have their own CCS2 cable attached, so you do not need to carry a separate DC cable.

Type 2 to Type 2 ev charging cable

Charging Cables

Type 2 to Type 2 charge cable 32a 7kW

Price range: $199.00 through $355.00 inc. GST
type2 to type 2 charger cable

Charging Cables

Type 2 to Type 2 EV Charge Cable 22kW 3 Phase

Price range: $225.00 through $279.00 inc. GST

Power appliances from your car

Leapmotor B03X V2L adapter

The B03X supports Vehicle-to-Load (V2L), allowing the traction battery to supply normal AC appliances through a compatible adapter connected to the Type 2 charge port. Published specifications list output at approximately 3.3kW.

Use V2L for camping equipment, fridges, lights, battery chargers, tools and other suitable portable appliances. It is a useful backup power source during a power cut and a convenient mobile supply away from mains power.

V2L is intended for appliances connected to the adapter. Do not backfeed a house socket, fixed wiring or switchboard.

Shop Leapmotor B03X V2L adapter

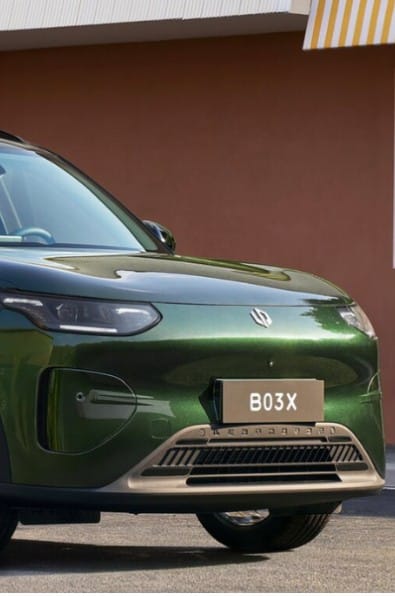

Public charging with the Leapmotor B03X

DC fast charging (CCS2): the B03X Life can charge at up to approximately 100kW DC, while the Design increases this to approximately 133kW DC. Leapmotor quotes around 16 minutes from 30–80% under suitable fast-charging conditions. DC fast chargers have their cable attached.

Public AC charging (Type 2): the B03X can accept up to 11kW three-phase AC. A 22kW public AC charger can therefore deliver up to the car’s 11kW limit. For socket-only public chargers you will need your own Type 2 to Type 2 cable.

See our NZ public charging guide for network information, or check PlugShare for charger locations and connector details.

Leapmotor B03X charging FAQs

What type of charger does the Leapmotor B03X use?

The B03X uses a Type 2 connection for AC charging and CCS2 for DC fast charging. Socket-only home chargers and many public AC chargers require a Type 2 to Type 2 cable.

For most New Zealand homes, a 7.4kW 32A single-phase wall charger is the best balance of charging speed and installation practicality. If your property has three-phase power, the B03X can charge faster at up to 11kW AC from a suitable three-phase wall charger.

Yes. The New Zealand B03X Life and Design both have an 11kW onboard AC charger. To reach 11kW you need a suitable three-phase electrical supply and three-phase EV wall charger.

No. A 22kW three-phase wall charger can supply more than the B03X can accept, but the vehicle will limit itself to approximately 11kW AC. A 22kW wall charger is still a good option because it allows the B03X to use its full AC rate and provides extra capacity for a future EV.

From 10–100%, allow approximately 5.4 hours for the 39.8kWh Life and 7.2 hours for the 53kWh Design on a 7.4kW single-phase wall charger. At the full 11kW three-phase rate this drops to approximately 3.6 and 4.8 hours.

A Type 2 to Type 2 cable. Because the B03X supports 11kW three-phase AC charging, we recommend a 22kW three-phase cable so the cable does not limit the car when you use an 11kW or 22kW AC charger.

The NZ Life is rated up to approximately 100kW DC and the Design up to approximately 133kW DC, both through CCS2. Leapmotor quotes around 16 minutes for a 30–80% fast charge under suitable conditions.

Yes. The B03X supports Vehicle-to-Load through a compatible adapter connected to the Type 2 charge port, with published specifications listing approximately 3.3kW output. View our Leapmotor V2L adapter here.

Yes. Suitable appliances can be plugged directly into the V2L adapter within the vehicle’s available output. It can run items such as a fridge, lights, chargers and other portable loads. Do not connect the V2L output directly into fixed house wiring or a switchboard unless a compliant purpose-designed system has been installed.

Installation cost depends on the distance from the switchboard to the parking location, cable route, whether the home is single-phase or three-phase and the available electrical capacity. We can arrange installation quotes through our installer network in many locations nationwide, or you can buy the charger only and use your own electrician. Request advice here.

Free advice, no obligation

Charger only, or charger + installation

Buy a B03X charger on its own and use your own electrician, or ask us for a recommended electrician in your area.

We can help with:
– Choosing between 7.4kW single-phase and 11kW three-phase charging
– Charger recommendation for your Leapmotor B03X
– Installation quotes in many locations nationwide
– Dynamic load balancing and solar charging
– Type 2 cable, portable charger and V2L advice
