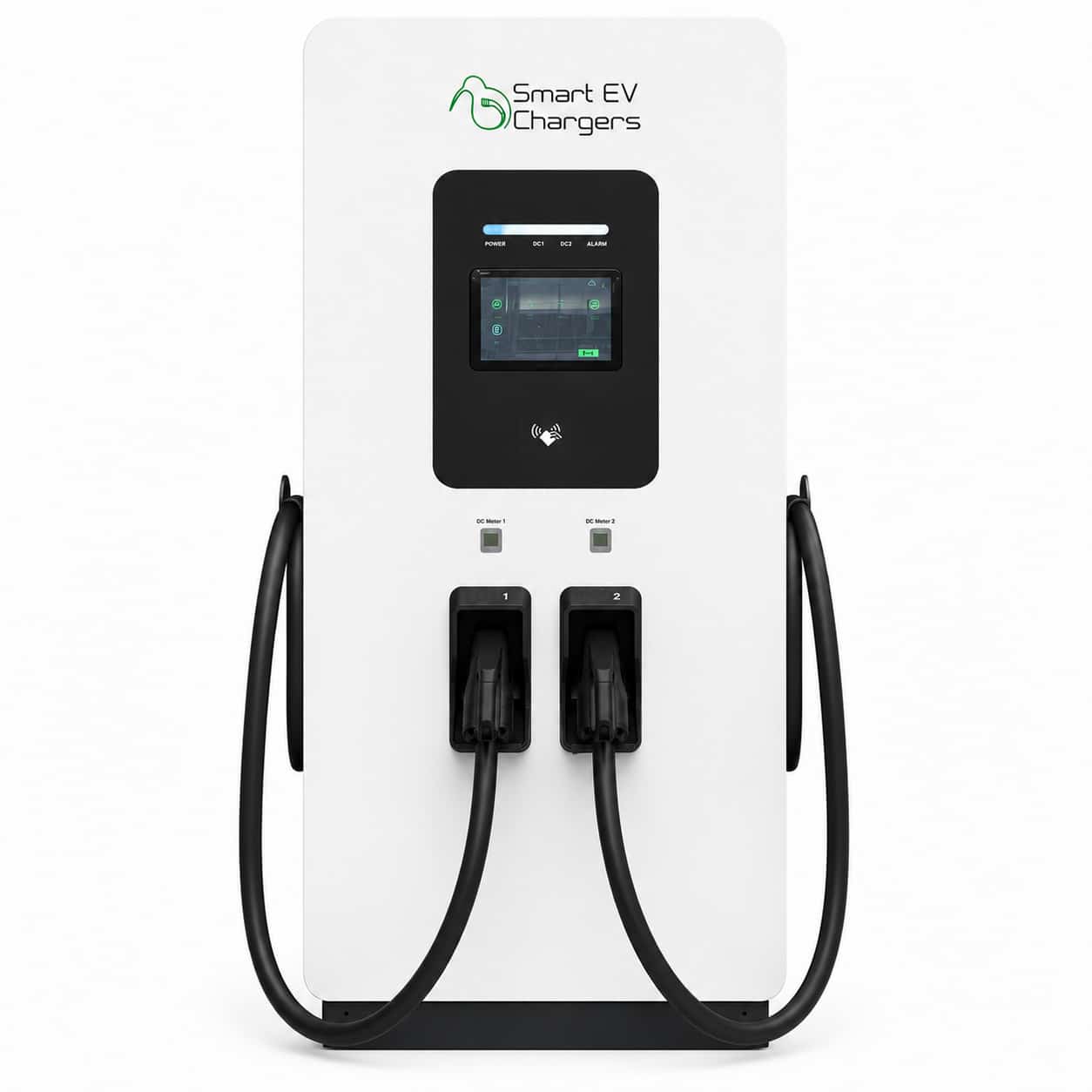

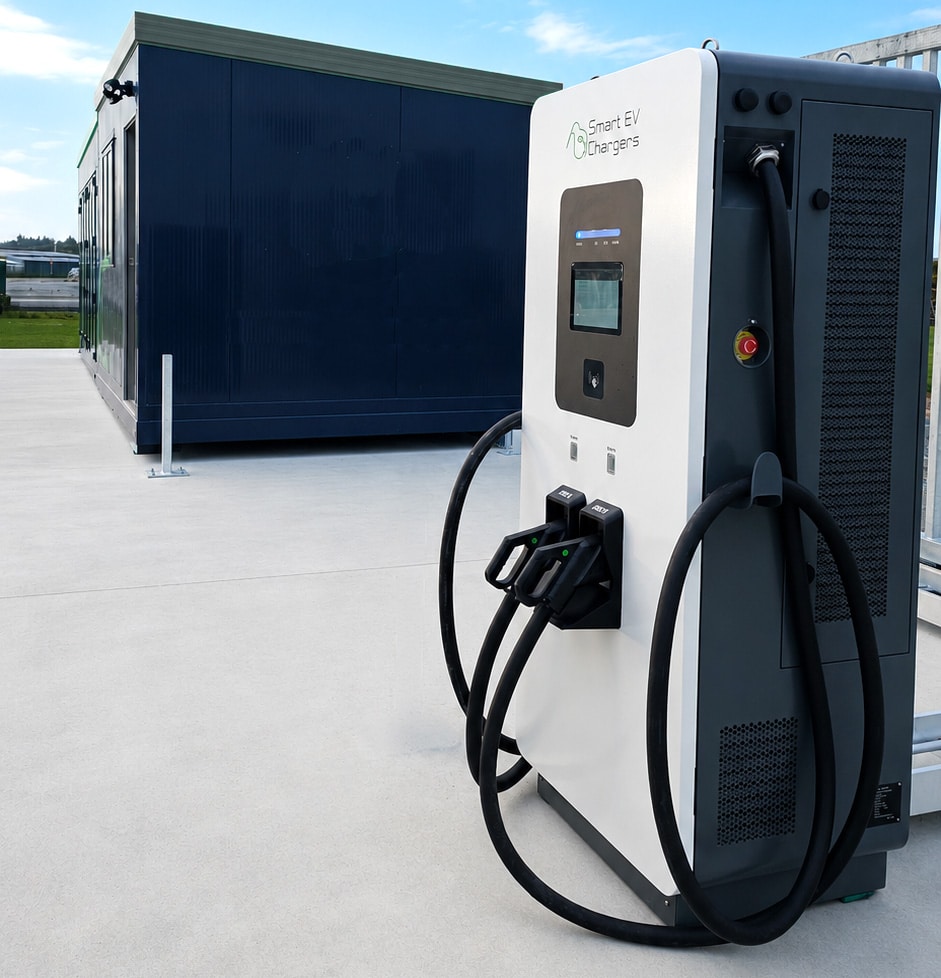

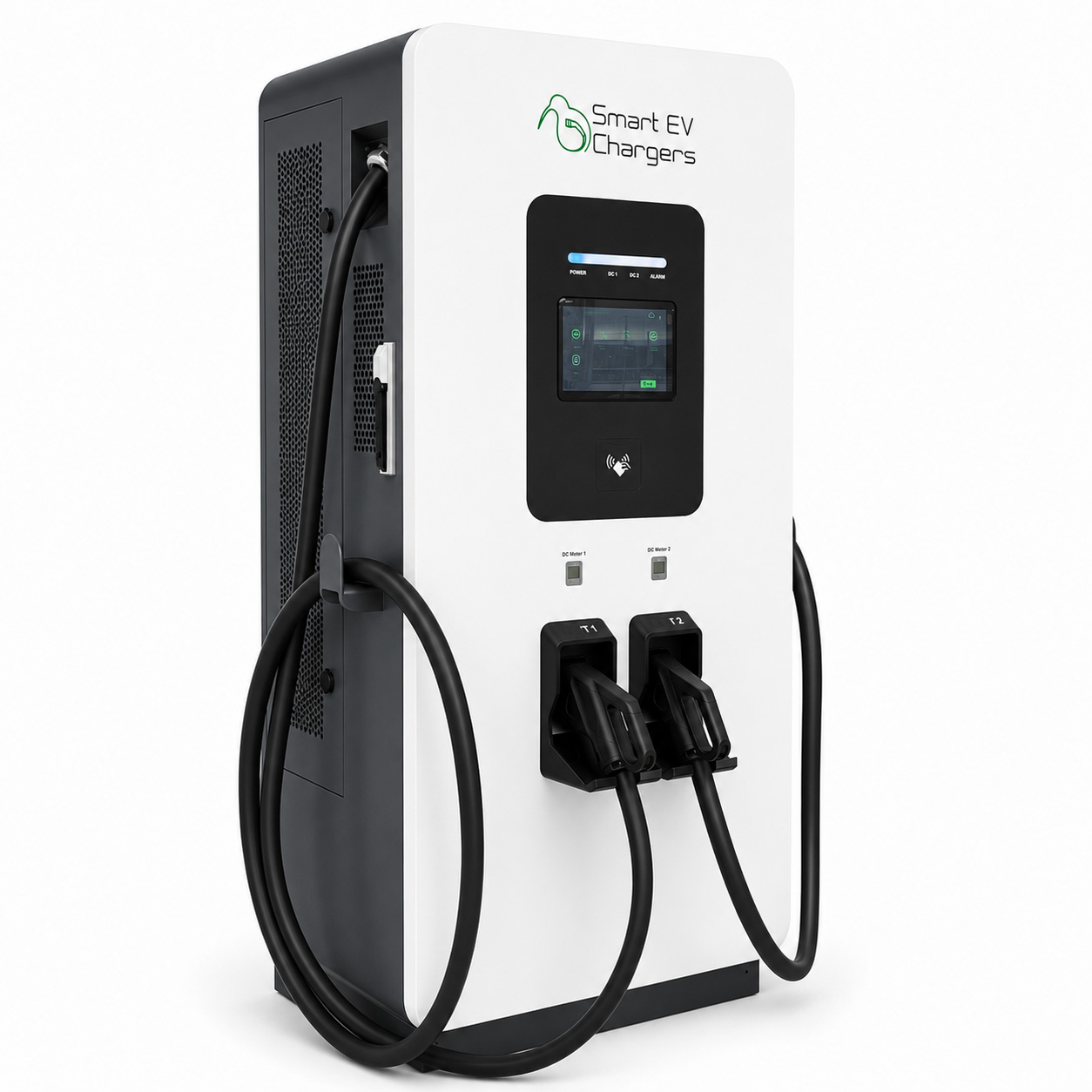

Smart EV Charger Pro DC — 60kW to 240kW Floor-Standing DC Fast Charger

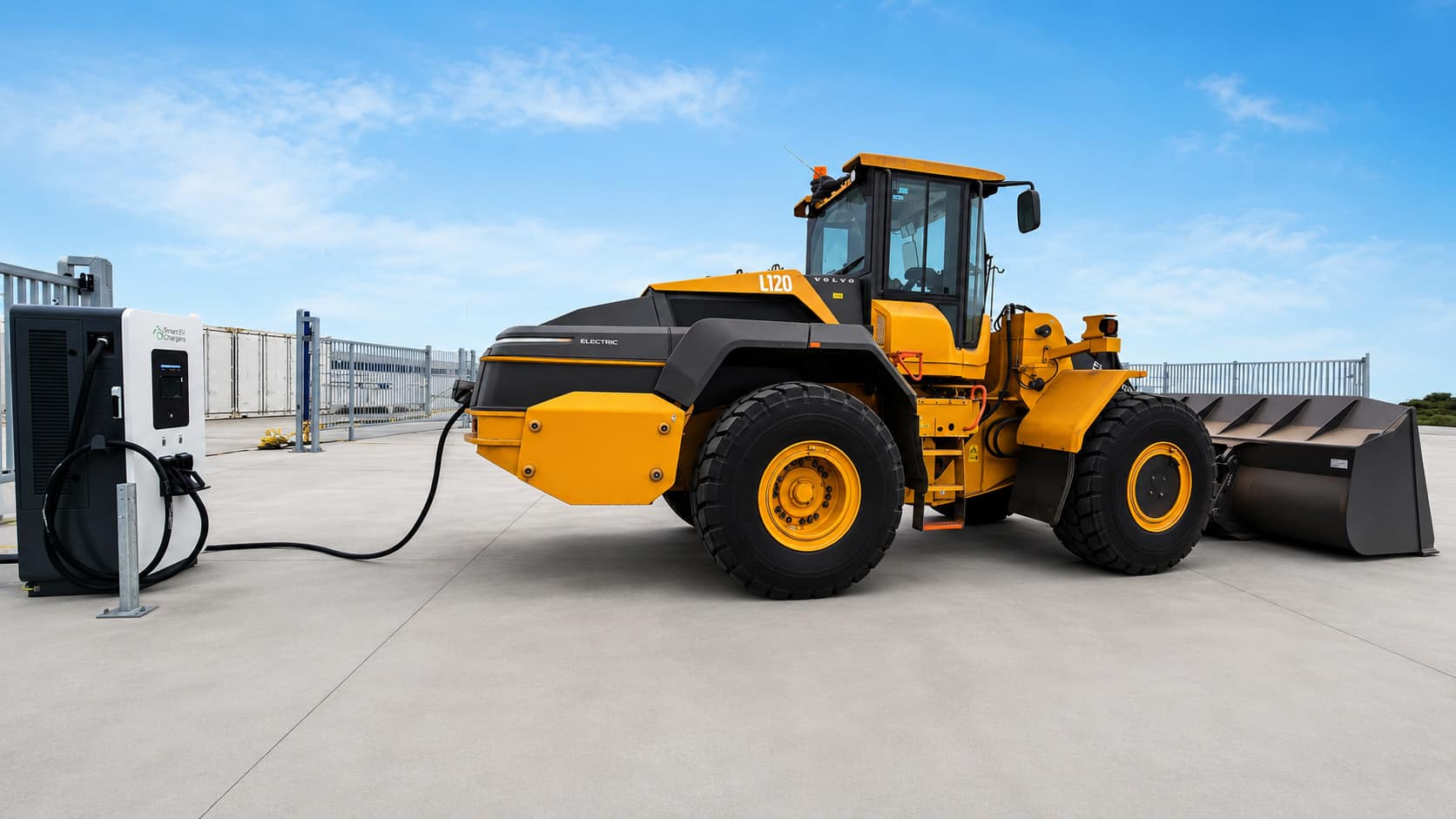

The Pro DC is a commercial-grade Level 3 DC fast charger built for service stations, fleet depots, dealerships, hotels, and destination charging sites where turnaround time matters. With output up to 240kW and the ability to charge two vehicles at once, it’s designed to keep cars, vans, and commercial EVs moving without long dwell times.
Configurable connector combinations mean you can specify the unit to suit your charging needs — CCS2 for almost everything on NZ roads today, CHAdeMO for older Leafs and Outlander PHEVs.
Key Features
- 60kW to 240kW DC output
- Dual output — charge two vehicles simultaneously
- 1000V max output, ready for current and next-generation EV platforms
- 10.1″ touchscreen with a simple, driver-friendly interface
- Multiple start modes: plug & play, RFID, OCPP back-office, QR code, or optional POS card terminal
- OCPP 1.6J and OCPP 2.0.1 compliant
- ISO 15118 plug & charge ready
- Ethernet and Wi-Fi as standard, 4G cellular optional
- IP55 / IK10 rated enclosure for outdoor installation in NZ conditions
Connector Options
Specify any two of the following on a single unit:
- CCS2 (the NZ standard)
- CHAdeMO (for Japanese imports)
Technical Specifications
| Electrical — Input | |
| Input voltage | 3-phase 400 VAC ±10%, 50/60 Hz, 3P+N+PE |
| Rated input current | 3Φ 96A (60kW) · 3Φ 128A (80kW) · up to 3Φ 384A (240kW) |
| Standby consumption | ≤ 100W |
| Electrical — Output | |
| Output voltage range | 150–1000 VDC |
| Max output power | 60kW, 80kW, 120kW, 180kW or 240kW (configuration dependent) |
| Max DC output current (system) | Up to 500A (configuration dependent) |
| DC output current per connector | 150–250A air-cooled · up to 500A liquid-cooled |
| Number of outputs | 2 (any two of CCS2, CHAdeMO) |
| User Interface | |
| Display | 10.1″ touchscreen |
| Metering | CE meter standard, MID meter optional |
| Authentication | RFID, QR code, app — optional POS terminal |
| Emergency stop | Yes |
| Communication | |
| Connectivity | Ethernet and Wi-Fi standard, 4G optional |
| OCPP | 1.6J and 2.0.1 |
| Vehicle communication | ISO 15118-1/2/3, DIN 70121 |
| Environmental | |
| Operating temperature | −30°C to 50°C (derating above 50°C) |
| Mechanical | |
| Dimensions (W × D × H) | 670 × 485 × 1600mm 60-80kW Model
850 x 800 x 2050mm 90-240kW Model |
| Weight | ≤ 225kg (higher-power configurations heavier) |
| IP / IK rating | IP55 · IK10 enclosure (HMI IK8) |
| Cable length | 5m standard — 6m, 7m or custom on request |
| Cooling | Air cooled (lower-power configurations) or liquid cooled (higher-power configurations) |
| Installation | Floor mounted |
| Protection | |
| Over/under voltage, overload, leakage current, over-temperature, surge, short circuit, insulation detection, self-diagnostic fault checking | |
Optional Configuration
- 4G cellular modem for sites without fixed internet
- Extended 6m or 7m charging cables
- No branding — brand your own charger
- Kw rating. Get in touch for the latest pricing.
- Critical spares held in Christchurch.
Talk to us about lead times, pricing, and site requirements. Available in NZ-spec configurations with the connector mix & output power that suits your customers.
