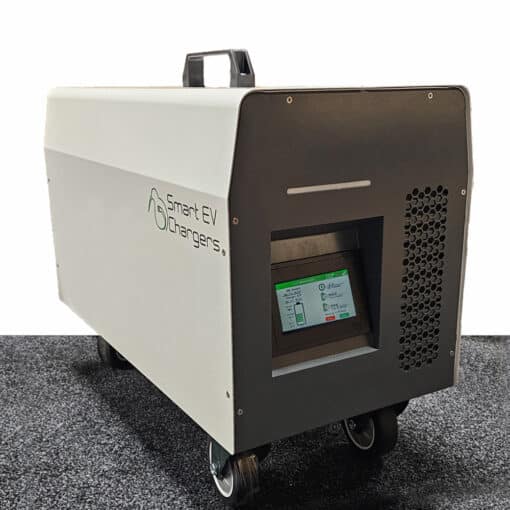

Rift Portable 30kW DC Charger

The Smart EV Charges Rift is a great way to charge faster at your business or workshop.
It is compatible with all types of electric vehicles, trucks and busses.

With the colour LCD touch screen you can monitor charging, log energy usage and set up
a password to restrict access. Its fully portable on wheels for easy movement.

The Smart EV Charger Rift has built in Type B protection so it can be plugged in to a standard 63a CEE red 5 pin 3 phase Wall socket.

Most cars are limited by the speed of the ac charge port to 7kW or 11kW. This will charge three times as fast at 30kW using the CCS2 fast charge port on the car.

Main Features

• Three phase AC input CEE 63a Plug
• OCPP 1.6j compliant
• Plug and charge or RFID
• On wheels for easy movement
• 4.3” colour touch screen
• CSS2 or optional CHAdeMO output cable
• 5m Attached output cable
• 3m Attached input cable
• Ethernet, connectivity
• Network connected or standalone

Specifications

Rated Power: 30kW
Input Voltage: Three phase 380v 3P+N+E
Current: 41.6a per phase
Output Voltage: DC200-1000v
Efficiency: 95%
Size: 650x396x280
Weight 50kg
Safety: Over Current/Voltage, Plug Temp protection, short circuit, DC leakage Type B
1 year warranty

Allow 1-2 months for stock to arrive from ordering. Get in touch to find out timing.
