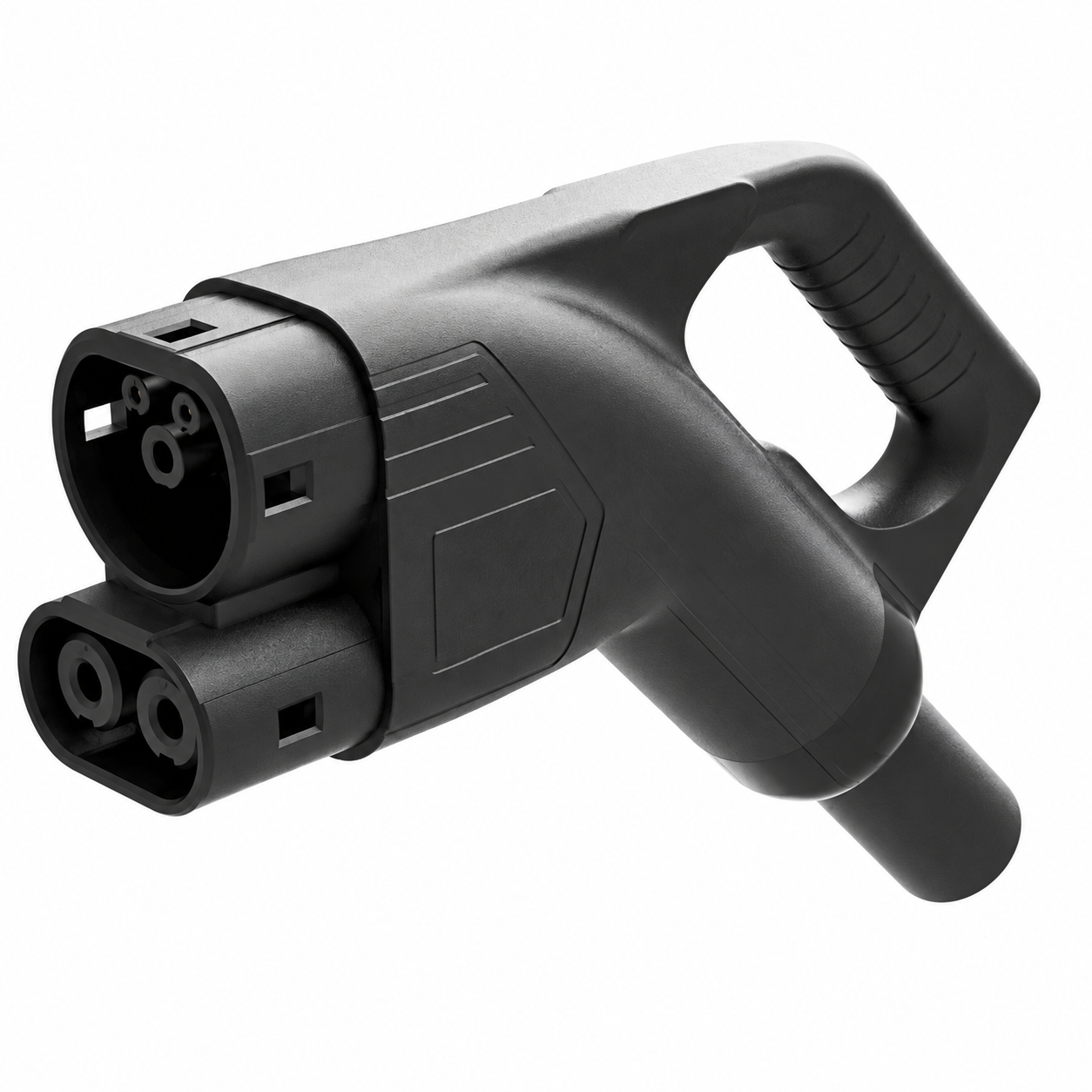

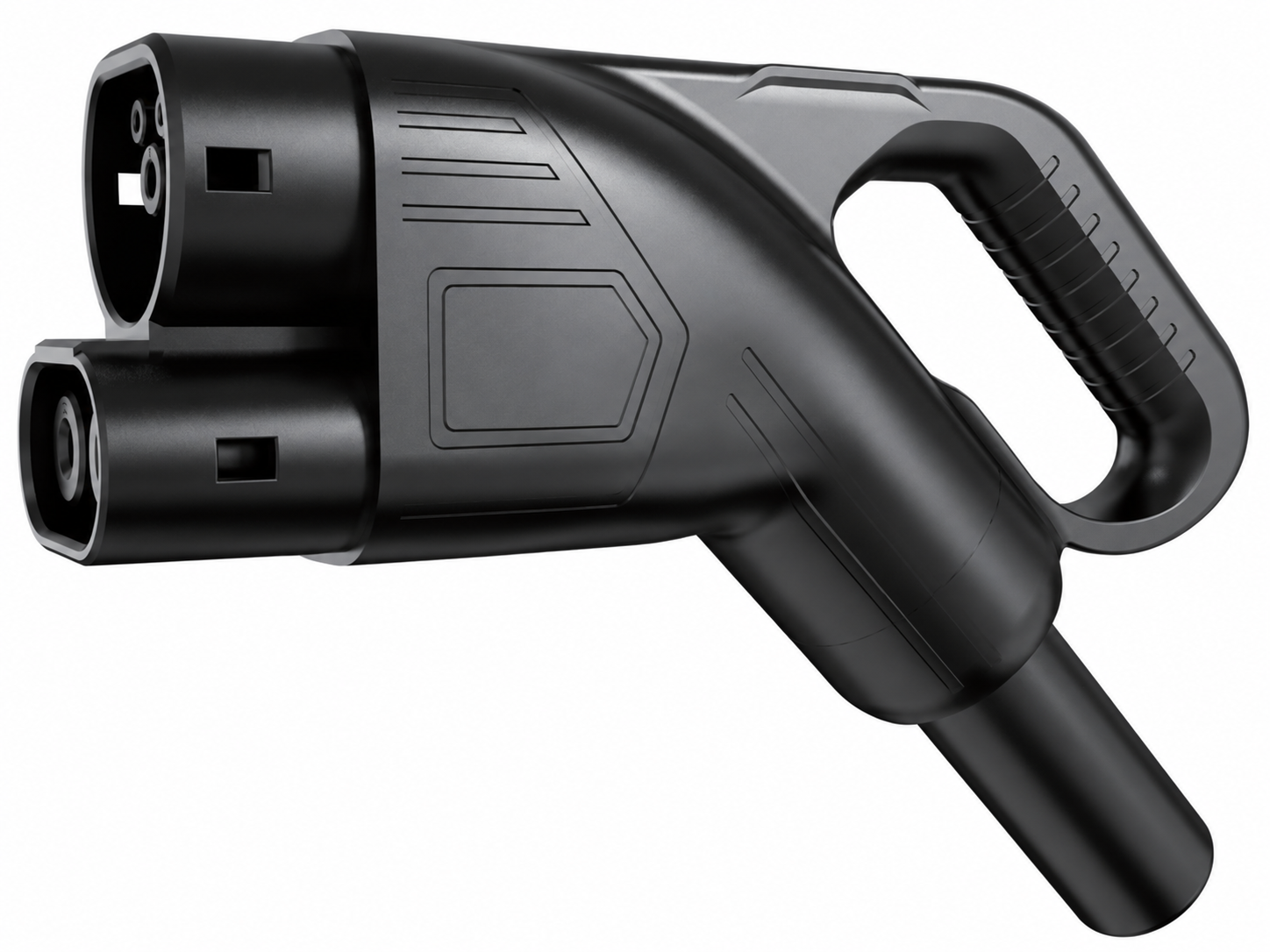

CCS2 DC charging connector for DC fast chargers, rated 80 A to 400 A at 1000 V DC.
Ultrasonic-welded terminals hold contact resistance to 0.5 mΩ max, which keeps terminal temperature rise under 50 K at rated current,
- Nine current ratings — 80 A, 125 A, 150 A, 200 A, 250 A, 300 A, 350 A, 375 A and 400 A
- Silver-plated copper alloy terminals in an IP55 thermoplastic housing
- Rated for more than 10,000 mating cycles 2 year warranty.
- TUV / CE certified, built to IEC 62196-3
- Made to order with any cable length. Allow around 20 days from order to delivery.
CCS2 DC charging connector for New Zealand DC fast chargers

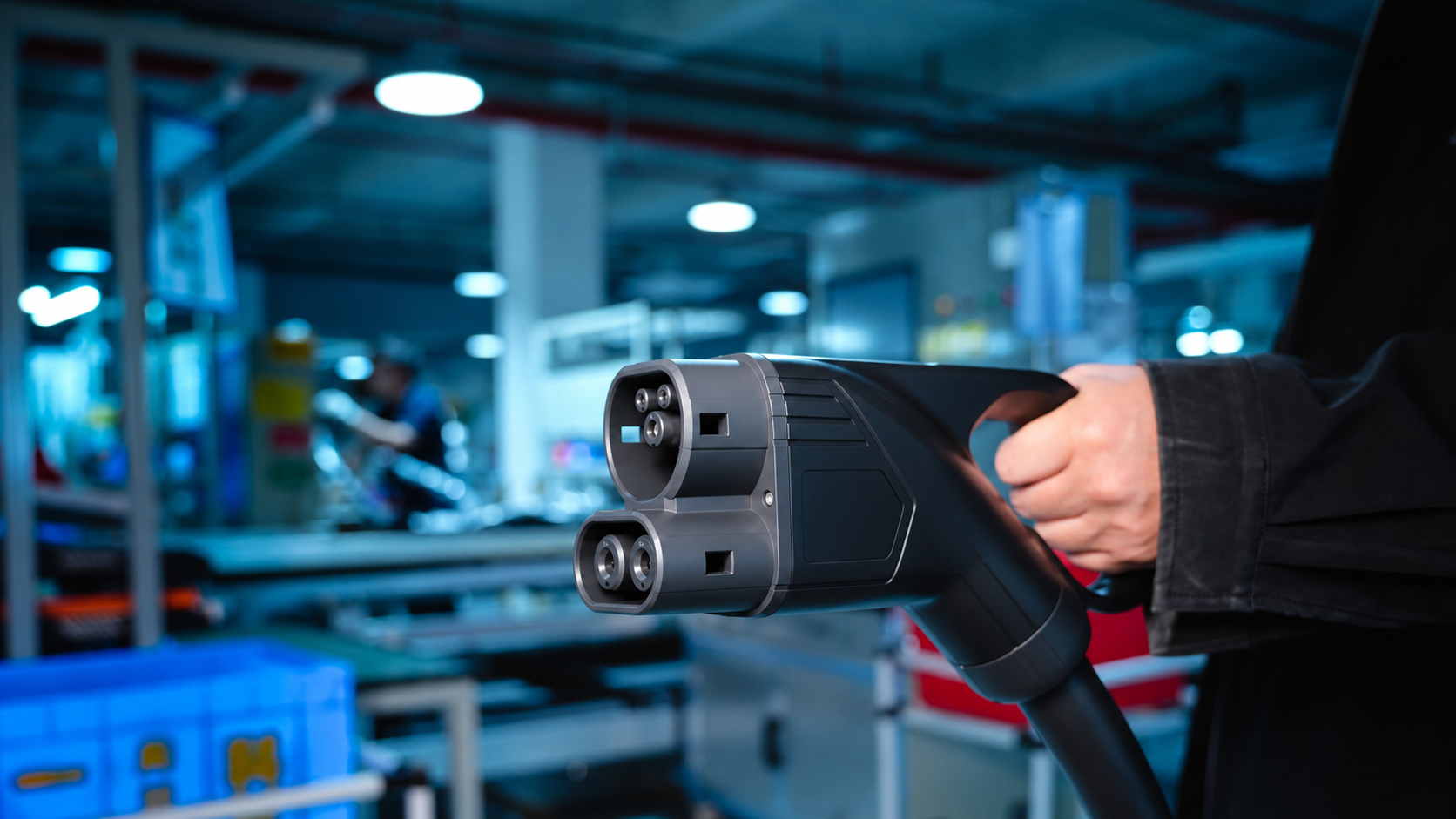

This is the vehicle-side CCS2 connector used on DC fast chargers — the plug the driver handles. It suits new charger builds, replacement of a damaged or worn connector on an existing DC unit.
Nine current ratings are available, from 80 A for compact and portable DC units up to 400 A for high-power installations.
Every option uses a natural-cooling cable — cooling comes from the conductor cross-section and cable construction.
Ultrasonic-welded terminals for a lower temperature rise
The power terminals are ultrasonically welded rather than crimped alone. The result is a contact resistance of 0.5 mΩ maximum, and a terminal temperature rise of less than 50 K at the connector’s rated current. Lower resistance at the joint means less heat generated in the connector during a high-current session, which supports both safety and the service life of the plug.
Built for public-site duty
The housing is a thermoplastic moulding rated IP55, with a moulded handle and strain relief designed for repeated one-handed use. Terminals are silver-plated copper alloy. The connector is rated for more than 10,000 mating cycles and is supplied with a 24 month / 10,000 cycle warranty — enough duty cycle for a public or destination charger seeing multiple sessions a day.
Choose your current rating
Select the rating that matches the DC output of your charger. Cable outer diameter increases with the current rating, so check the gland and cable-management clearances on your unit before ordering.
| Model | Rated current | Cable specification | Cable OD |
|---|---|---|---|
| CCS2-400A | 400 A | 4×60mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 38 mm |
| CCS2-375A | 375 A | 4×50mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 34.5 mm |
| CCS2-350A | 350 A | 4×50mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 34.5 mm |
| CCS2-300A | 300 A | 4×40mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 32 mm |
| CCS2-250A | 250 A | 4×35mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 31 mm |
| CCS2-200A | 200 A | 4×25mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 29 mm |
| CCS2-150A | 150 A | 2×35mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 25 mm |
| CCS2-125A | 125 A | 2×25mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 22.5 mm |
| CCS2-80A | 80 A | 2×16mm² + 1×6mm² + (2×0.75mm²)(P2) + 2×(2×0.75mm²) | 20.5 mm |
Not sure which rating suits your charger? Send us the model and DC output and we’ll confirm the right connector and cable length.
Technical specifications
| Rated current | 80 A – 400 A |
|---|---|
| Rated voltage | 1000 V DC |
| Standard | IEC 62196-3 (CCS Combo 2) |
| Insulation resistance | > 500 MΩ |
| Contact resistance | 0.5 mΩ max |
| Withstand voltage | 3500 V AC |
| Terminal temperature rise | < 50 K |
| Insertion / withdrawal force | < 100 N |
| Casing material | Thermoplastic, IP55 |
| Terminal material | Copper alloy, silver plated |
| Flammability rating | UL94 V-0 |
| Operating temperature | −35 °C to +50 °C |
| Mechanical lifespan | > 10,000 mating cycles |
| Connector dimensions | 295.8 × 145.9 × 71.9 mm |
| Certification | TUV / CE |
| Warranty | 24 months / 10,000 mating cycles |
Can I get these branded?
Yes, by default there is no branding. We can do custom branding.
Do you supply the whole DC charger as well?
We do. See our DC fast chargers range, or talk to us about a build for your site.
